Belfuse V890-1CX1-46 Compatible LINK-PP LPJD0916B47NL 10/100/1000 Base-T Yellow/Green LED Vertical rj45 jack manufacturers

Brand Name : LINK-PP

Model Number : LPJD0916B47NL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

Compatible : Belfuse

Competitor P/N : V890-1CX1-46

Compatible Brands : Belfuse

LED Option : Yellow&Green/Yellow&Green

Temperature : 0℃ to 70℃

Application - LAN : ETHERNET (NON PoE)

Reviews : 3

N.W/pcs : 0.012kg

Package : Tray

SPQ : 40pcs

Qty/carton : 640pcs

Carton size : 37*30*30cm

G.W/carton : 7.5kg

Contact Now

Belfuse V890-1CX1-46 Compatible LINK-PP LPJD0916B47NL 10/100/1000 Base-T Vertical rj45 jack manufacturers For Embedded Main Board (Top Entry Yellow/Green LED)


The LPJD0916B47NL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Industrial PC, Smart Meters,Patient Care.

LINK-PP Part Number:
 LPJD0916B47NL Belfuse Part Number V890-1CX1-46
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x1 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
180° Angle (Right)PCB Mount Angle

THT Solder

Shield EMI Tabs
WithoutLED Option

Yellow&Green/Yellow&Green

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.660/16.76Package Length (Inches/mm)

0.911/23.15

Package Width (Inches/mm)
0.634/16.10
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C



































Product Tags:

LPJD0916B47NL


Wholesale Belfuse V890-1CX1-46 Compatible LINK-PP LPJD0916B47NL 10/100/1000 Base-T Yellow/Green LED Vertical rj45 jack manufacturers from china suppliers

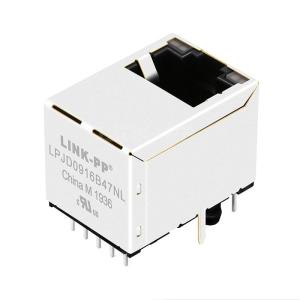

Belfuse V890-1CX1-46 Compatible LINK-PP LPJD0916B47NL 10/100/1000 Base-T Yellow/Green LED Vertical rj45 jack manufacturers Images
