LPJK2074AHNL 100/1000 Base-T Single Port RJ45 Magjack With POE+ Tab Up Green/Yellow Led

Name: LPJK2074AHNL 1001000 BaseT Single Port RJ45 Magjack With POE Tab Up GreenYellow Led
Brand: LINK-PP
Price: 1 USD

Wholesale LPJK2074AHNL 100/1000 Base-T Single Port RJ45 Magjack With POE+ Tab Up Green/Yellow Led from china suppliers

Brand Name : LINK-PP

Model Number : LPJK2074AHNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

LINK-PP P/N : LPJK2074AHNL

Manufacturer : LINK-PP

Compatible Brands : LINK-PP

Application - LAN : PoE+

Temperature : 0℃ to 70℃

Latch : Up

Pin Type : THT SOLDER

LED Option : Green / Yellow

Shield EMI Tabs : YES

Speed : 1000 Base-T

Reviews : 44

N.W/pcs : 0.008kg

Package : Tray

SPQ : 50pcs

Qty/carton : 1200pcs

Carton size : 32*30*31cm

G.W/carton : 9kg

Contact Now

LINK-PP LPJK2074AHNL 100/1000 Base-T Magjack RJ45 Connector for Industrial PC and Fieldbus System (POE+,Single Port, Tab Up,Green/Yellow Led)

The LPJK2074AHNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3 at, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJK2074AHNL	Connector Type	Jack
Part Status	Active	Mounting Type	Through Hole
Number of Positions/Contacts	16p8c (RJ45, Ethernet)	Application-Lan	Ethernet( PoE+)
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.531/13.50	Package Length (Inches/mm)	1.280/32.50
Package Width (Inches/mm)	0.654/16.60	Temperature	0℃ TO 70℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Product Tags:

LPJK2074AHNL

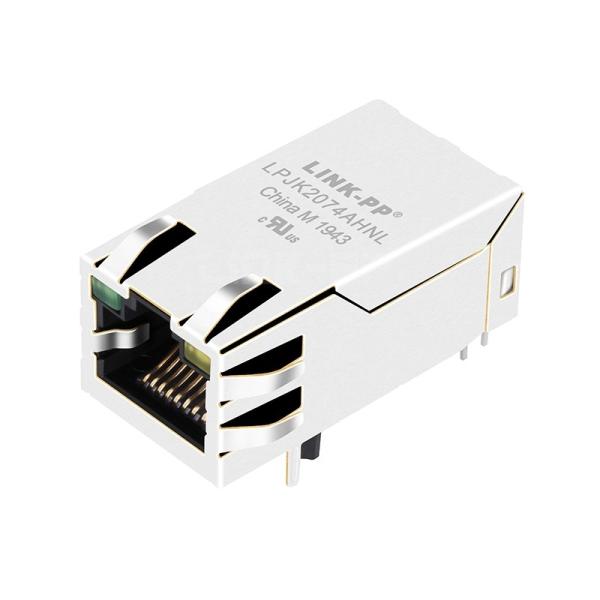

LPJK2074AHNL 100/1000 Base-T Single Port RJ45 Magjack With POE+ Tab Up Green/Yellow Led Images
