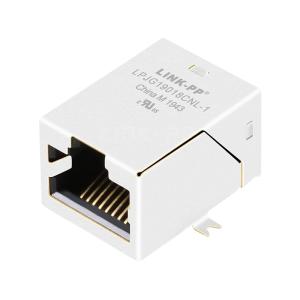

LPJG19018CNL-1 Single Port Integrated Magnetics RJ45 SMT Jack Tab Up Without Led

Name: LPJG19018CNL1 Single Port Integrated Magnetics RJ45 SMT Jack Tab Up Without Led
Brand: LINK-PP
Price: 1 USD

Wholesale LPJG19018CNL-1 Single Port Integrated Magnetics RJ45 SMT Jack Tab Up Without Led from china suppliers

Brand Name : LINK-PP

Model Number : LPJG19018CNL-1

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

LINK-PP P/N : LPJG19018CNL-1

Manufacturer : LINK-PP

Compatible Brands : LINK-PP

Latch : Up

Shield EMI Tabs : NO

LED Option : No LEDs

Temperature : -40℃ to +85℃

Application - LAN : ETHERNET (NON PoE)

Questions : 1

Reviews : 47

N.W/pcs : 0.008kg

Package : Tray

SPQ : 50pcs

Qty/carton : 1200pcs

Carton size : 32*30*31cm

G.W/carton : 9kg

Contact Now

LINK-PP LPJG19018CNL-1 Integrated Magnetics RJ45 SMT Jack for Industrial PC and Fieldbus System (Single Port, Tab Up)

The LPJG19018CNL-1 supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJG19018CNL-1	Connector Type	Jack
Part Status	Active	Mounting Type	Surface Mount
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet( NoN PoE )
Number of Ports	1x1 Port	Speed	- Base-T
Latch	UP	Cores per Port	8
Orientation	Right Angle	PCB Mount Angle	90°
Shield EMI Tabs	Without	LED Option	Green/Yellow Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.524/13.30	Package Length (Inches/mm)	0.850/21.60
Package Width (Inches/mm)	0.630/16.00	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C
