Tyco 5-1840401-7 Compatible LINK-PP LPJG16457AFNL 100/1000 Base-T Tab Up Green/Green Led Single Port Shielded 8P8C Magnetic RJ 45 Connector

Name: Tyco 518404017 Compatible LINKPP LPJG16457AFNL 1001000 BaseT Tab Up GreenGreen Led Single Port Shielded 8P8C Magnetic RJ 45 Connector
Brand: LINK-PP
Price: 1 USD

Wholesale Tyco 5-1840401-7 Compatible LINK-PP LPJG16457AFNL 100/1000 Base-T Tab Up Green/Green Led Single Port Shielded 8P8C Magnetic RJ 45 Connector from china suppliers

Brand Name : LINK-PP

Model Number : LPJG16457AFNL

Certification : UL,ROHS,Reach,ISO

Place of Origin : Guangdong,China

Compatible : Tyco

Competitor P/N : 5-1840401-7

Compatible Brands : Tyco

Application - LAN : ETHERNET (NON PoE)

Temperature : -40℃ to +85℃

Latch : Up

Pin Type : THT SOLDER

LED Option : Green / Green

Shield EMI Tabs : YES

Reviews : 9

N.W/pcs : 0.008kg

Package : Tray

SPQ : 50pcs

Qty/carton : 1200pcs

Carton size : 32*30*31cm

G.W/carton : 9kg

Contact Now

Tyco 5-1840401-7 Compatible LINK-PP LPJG16457AFNL 100/1000 Base-T Shielded 8P8C Magnetic RJ 45 Connector for Industrial PC and Fieldbus System (Single Port, Tab Up, Green/Green Led)

The LPJG16457AFNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Digital Camera, Router, Automation and Network Firewall.

LINK-PP Part Number:	LPJG16457AFNL	Tyco Part Number	5-1840401-7
Part Status	Active	Connector Type	Jack
Number of Positions/Contacts	10p8c (RJ45, Ethernet)	Application-Lan	Ethernet( NoN PoE )
Number of Ports	1x1 Port	Speed	10/100/1000 Base-T
Latch	UP	Cores per Port	8
Orientation	90° Angle (Right)	PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With	LED Option	Green/Green Leds
PCB	FR4	PCB Retaining Post	T POST
Package Height (Inches/mm)	0.530/13.45	Package Length (Inches/mm)	0.837/21.25
Package Width (Inches/mm)	0.628/15.95	Temperature	-40℃ TO 85℃
Bst Circuit	Yes	AutomDX	YES
Diodes	No	Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT	Configuration RX/TX	T,C

Product Tags:

LPJG16457AFNL

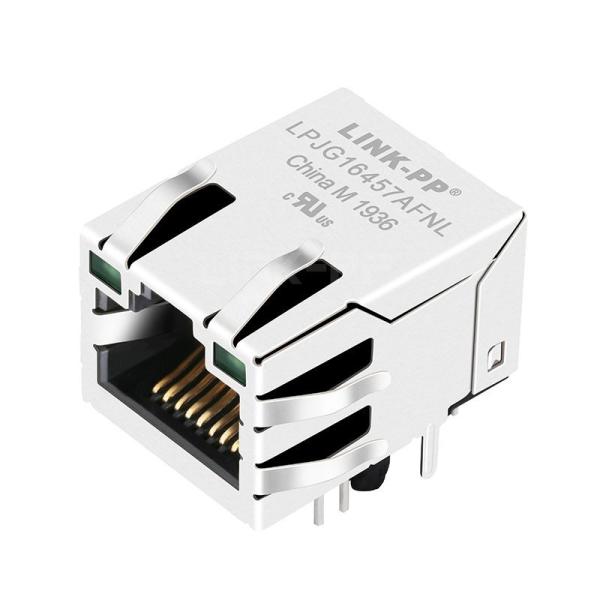

Tyco 5-1840401-7 Compatible LINK-PP LPJG16457AFNL 100/1000 Base-T Tab Up Green/Green Led Single Port Shielded 8P8C Magnetic RJ 45 Connector Images
